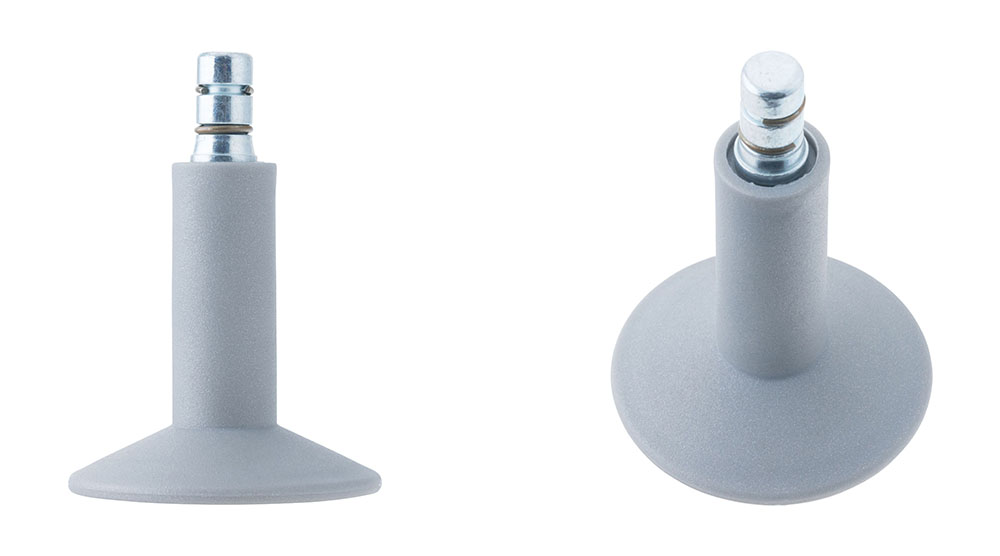

STATO F121

STATO complements the Traditional casters as a matching glide, either in plastic or chrome.

The standard for this glide is a flat bottom part.

No-Noise™ is the patented, clean and quiet transition from caster to chair base. The key difference compared to standard stems is in its technical details: The stem mount ensures there is no dirt or metal on metal grinding and the various size circlips compensate for potential tolerances in chair bases.

Sales are made to commercial customers only.

Technical Details

Product Type Glide
Glide bottom diameter 60mm
Load capacity 75kg
Overall height with fixing 64,5mm

Housing:


Bottom standard
Upper glide material High quality plastic
Upper glide color RAL 9007 Grey aluminium
Lower glide material High quality plastic
Lower glide color RAL 9007 Grey aluminium
Fixing No-Noise™ Stem, 11x19,5mm Push fit stem with double circlips, 11,4mm
Description F 121 BG1X2NN

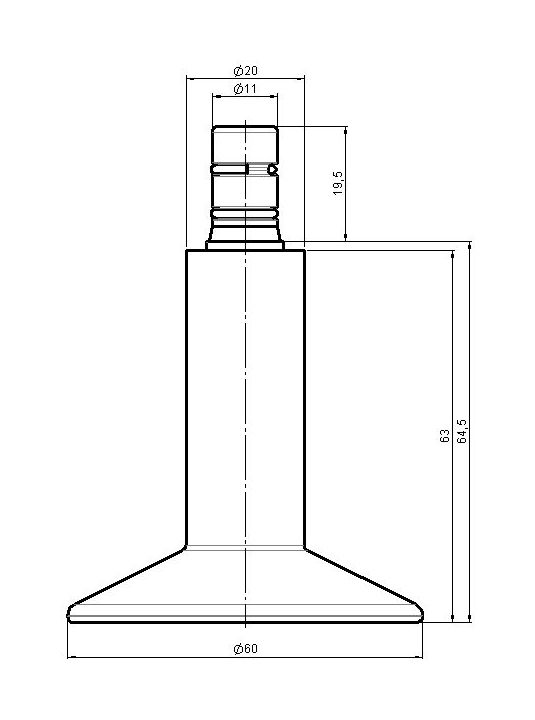

Technical Drawing

Fixings

Compatible with the following available fixings:

No-Noise™ Stem:

  • 11x19,5mm with 11,4mm circlip
  • 11x19,5mm with 110,6mm circlip

Push fit stems:

  • 10x22mm with 10,3mm circlip
  • 10x22mm with 10,5mm circlip
  • 11x19,5mm with 11,4mm circlip
  • 11x19,5mm with 11,8mm circlip
  • 11x22mm with 11,4mm circlip
  • 11x22mm with 11,6mm circlip
  • 11x22mm with 11,8mm circlip

Threaded stems:

  • M8x15mm
  • M8x20mm
  • M8x25mm
  • M10x15mm
  • M10x20mm
  • M10x25mm
  • M10x30mm
  • M10x40mm
  • M12x20mm

Square plates:

  • 38x38mm
  • 55x55mm
  • 60x60mm

Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
