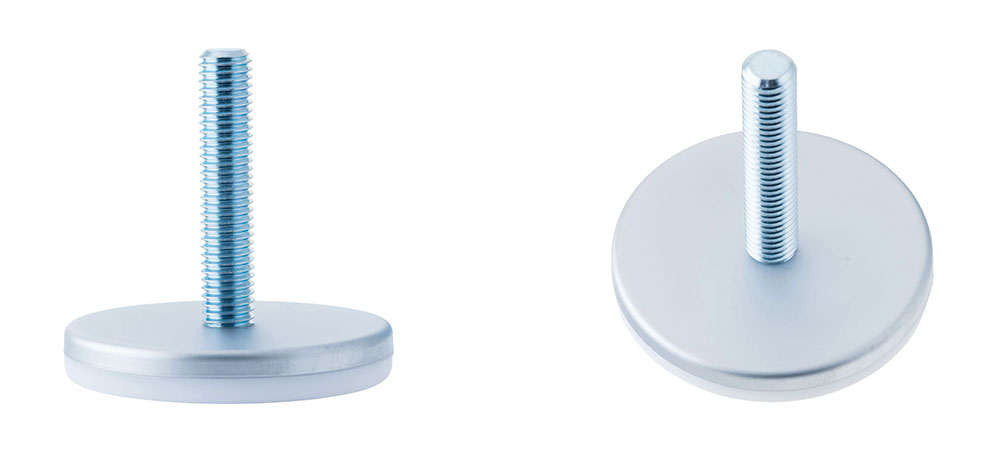

STATO F034

STATO complements the Traditional casters as a matching glide, either in plastic or chrome.

The standard for this glide is a flat bottom part.

Sales are made to commercial customers only.

Technical Details

Product Type Glide
Glide bottom diameter 60mm
Load capacity 75kg
Overall height with fixing 10mm

Housing:


Bottom standard
Upper glide material Steel plate
Upper glide color Matte chrome
Lower glide material High quality plastic
Lower glide color Other
Fixing Standard, M10x50mm Threaded stem, without circlip
Description F 34 BG 1X10

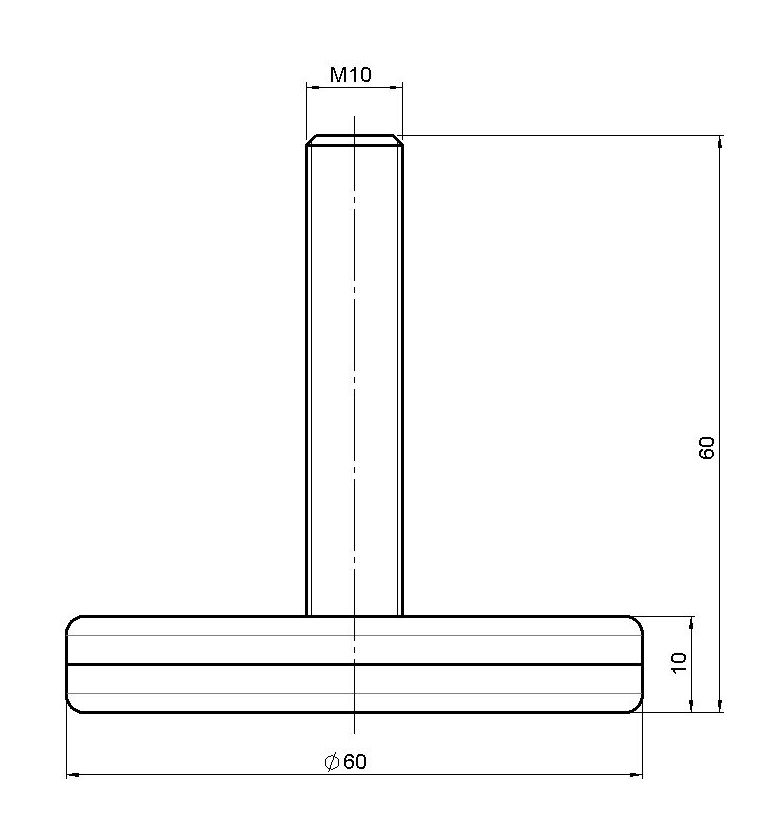

Technical Drawing
