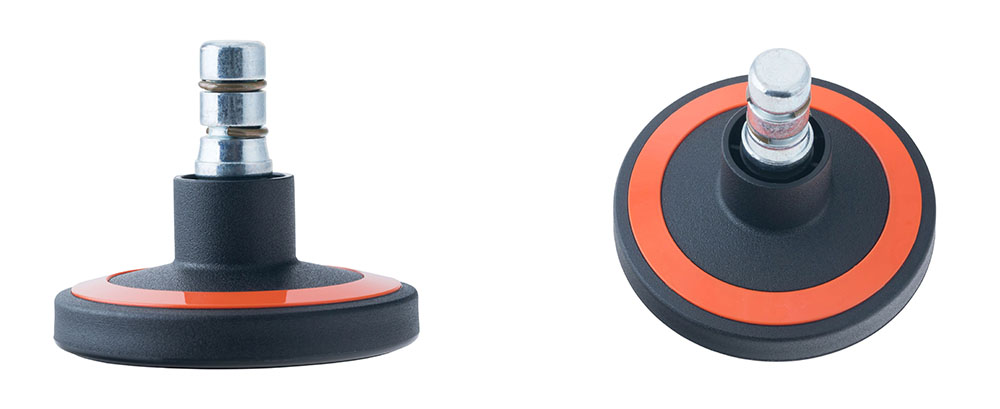

STATO M F128

Sales are made to commercial customers only.

Technical Details

Product Type Glide
Glide bottom diameter 60mm
Load capacity 80kg
Overall height with fixing 30,5mm

Housing:


Bottom standard
Upper glide material High quality plastic
Upper glide color RAL 9005 Jet black with middle ring in RAL 2009 Traffic orange
Lower glide material High quality plastic
Lower glide color RAL 9005 Jet black
Fixing No-Noise™ Stem, 11x19,5mm Push fit stem with double circlips, 11,4mm
Description F 128 BG1X2NN

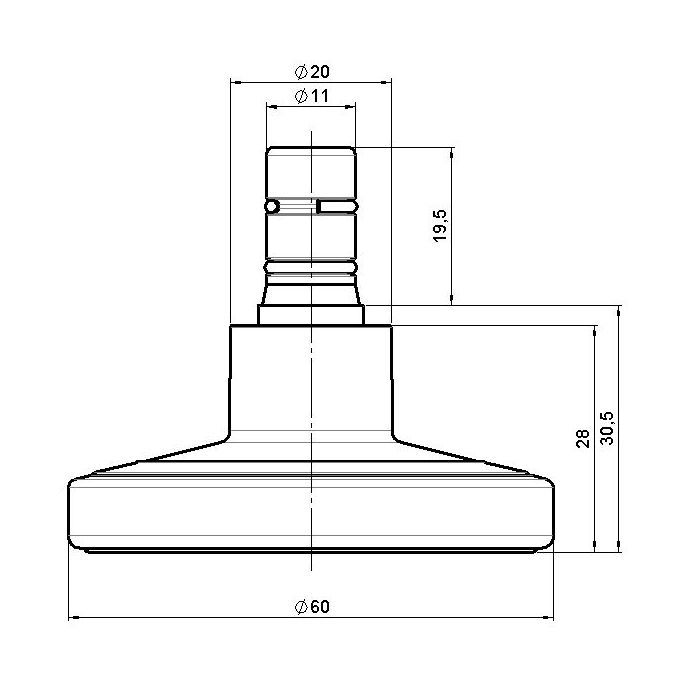

Technical Drawing

Fixings

Compatible with the following available fixings:

No-Noise™ Stem:

  • 11x19,5mm with 11,4mm circlip
  • 11x19,5mm with 110,6mm circlip

Push fit stems:

  • 10x22mm with 10,3mm circlip
  • 10x22mm with 10,5mm circlip
  • 11x19,5mm with 11,4mm circlip
  • 11x19,5mm with 11,8mm circlip
  • 11x22mm with 11,4mm circlip
  • 11x22mm with 11,6mm circlip
  • 11x22mm with 11,8mm circlip

Threaded stems:

  • M8x15mm
  • M8x25mm
  • M10x15mm
  • M10x25mm

Square plates:

  • 38x38mm
  • 55x55mm
  • 60x60mm

Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
