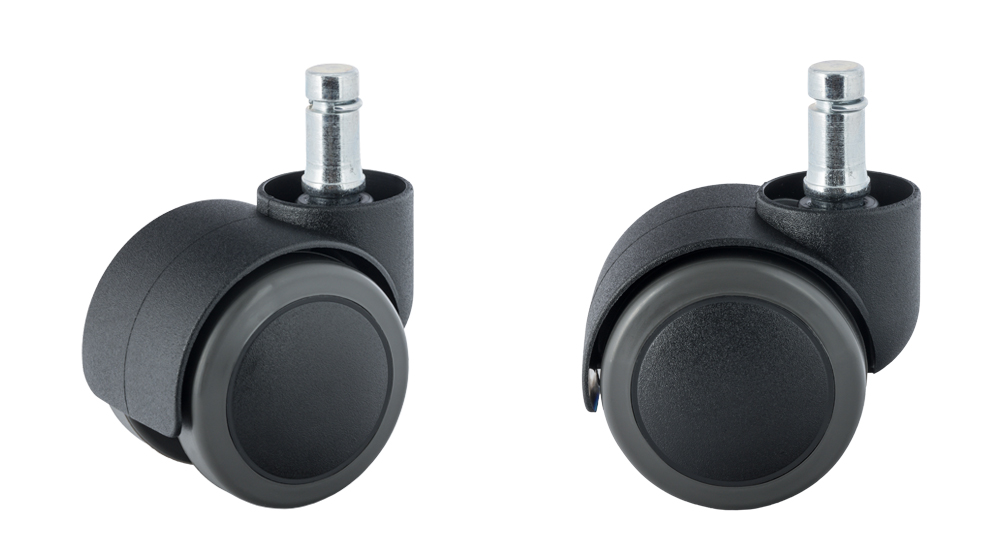

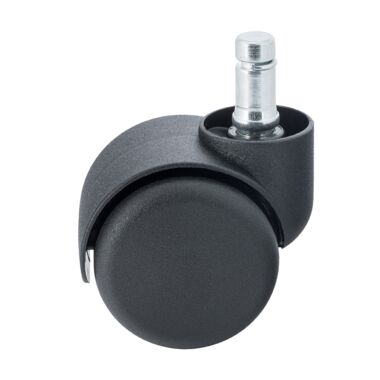

Standard D421

Some of the Gross Stabil products have been in production and unchanged for over 15 years. These casters have been popular with our customers in the past and continue to be a staple today. Satisfied customers are the best proof of quality.

A must for every swivel chair: the unloaded braked function. The casters roll freely when loaded, but otherwise a resistance is activated and rolling away is prevented.

Sales are made to commercial customers only.

Technical Details

Product Type Chair caster
Wheel diameter 50mm
Load capacity 50kg

Wheel:


Wheel type Soft wheel
Wheel core / tread color RAL 9005 Jet black / RAL 7022 Umbra grey

Housing:


Neck diameter 31mm
Housing color RAL 9005 Jet black
Mobility concept Unloaded braked, Standard
Fixing 11x22mm Laufstift für direkte Befestigung, 11,4mm
Description DUKG421 -24 X 2

Fixings

Compatible with the following available fixings:

No-Noise™ Stem:

  • 11x19,5mm with 11,4mm circlip
  • 11x19,5mm with 110,6mm circlip

Push fit stems:

  • 10x22mm with 10,3mm circlip
  • 10x22mm with 10,5mm circlip
  • 11x19,5mm with 11,4mm circlip
  • 11x19,5mm with 11,8mm circlip
  • 11x22mm with 11,4mm circlip
  • 11x22mm with 11,6mm circlip
  • 11x22mm with 11,8mm circlip

Threaded stems:

  • M8x15mm
  • M8x20mm
  • M8x25mm
  • M10x15mm
  • M10x20mm
  • M10x25mm
  • M10x30mm
  • M10x40mm
  • M12x20mm

Square plates:

  • 38x38mm
  • 55x55mm
  • 60x60mm

Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
