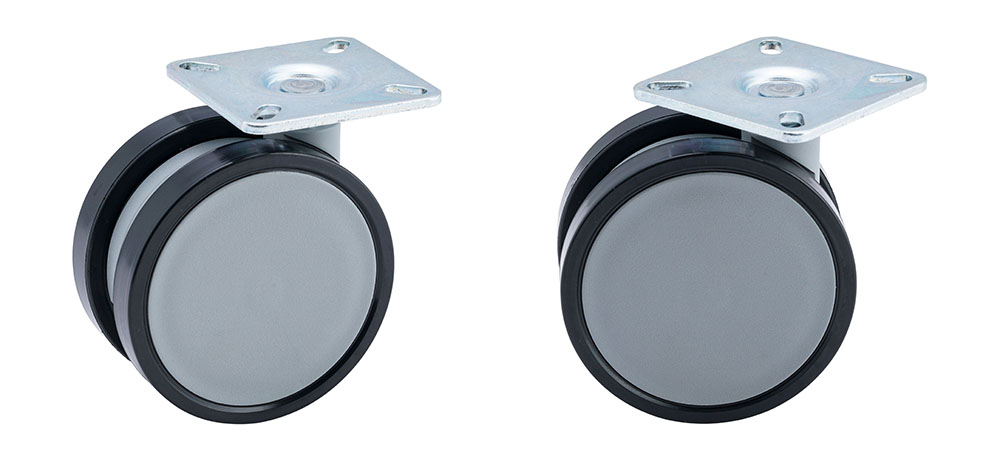

Standard D081

Some of the Gross Stabil products have been in production and unchanged for over 15 years. These casters have been popular with our customers in the past and continue to be a staple today. Satisfied customers are the best proof of quality.

Traditionals are our original and extensive basic caster line - a proven standard.
These casters have been popular with our customers for many years in the past and continue to be a staple today.

Sales are made to commercial customers only.

Technical Details

Product Type Furniture caster
Wheel diameter 80mm
Load capacity 80kg
Overall height with fixing 92mm

Wheel:


Wheel type Soft wheel
Wheel core / tread color RAL 9006 White aluminium / RAL 9005 Jet black

Housing:


Housing form unhooded, with neck diameter
Neck diameter 22mm
Housing material High quality nylon
Housing color RAL 9006 White aluminium
Mobility concept Freewheel
Fixing 60x60mm Plate
Description DUK 81 - 2 X 1

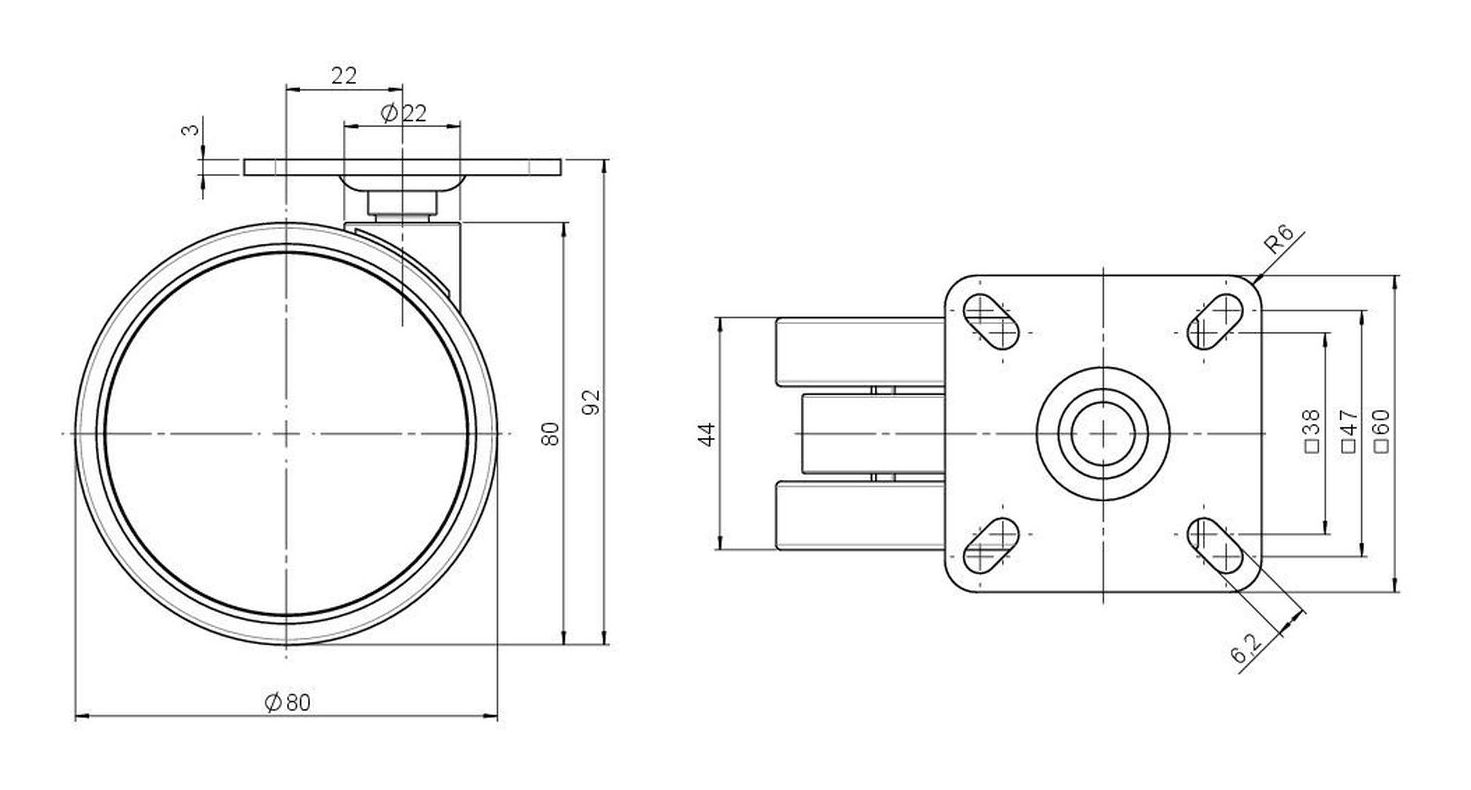

Technical Drawing

Fixings

Compatible with the following available fixings:

No-Noise™ Stem:

  • 11x19,5mm with 11,4mm circlip
  • 11x19,5mm with 110,6mm circlip

Push fit stems:

  • 10x22mm with 10,3mm circlip
  • 10x22mm with 10,5mm circlip
  • 11x19,5mm with 11,4mm circlip
  • 11x19,5mm with 11,8mm circlip
  • 11x22mm with 11,4mm circlip
  • 11x22mm with 11,6mm circlip
  • 11x22mm with 11,8mm circlip

Threaded stems:

  • M8x15mm
  • M8x20mm
  • M8x25mm
  • M10x15mm
  • M10x20mm
  • M10x25mm
  • M10x30mm
  • M10x40mm
  • M12x20mm

Square plates:

  • 38x38mm
  • 55x55mm
  • 60x60mm

Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
