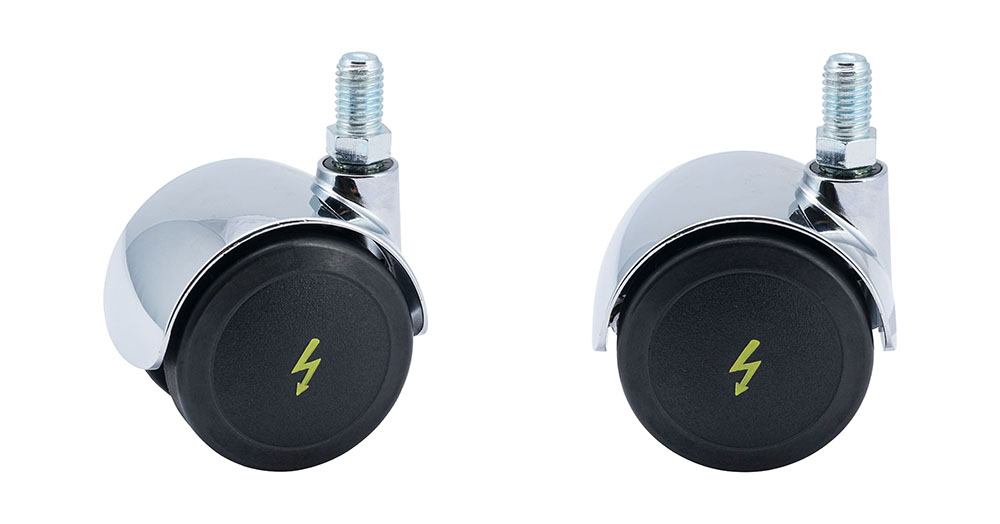

MOVE 50 elegance

The MOVE family is the basis of our success and offers the greatest possible variety of casters for different applications. The guide insert is the key component of our patented MOVE technology, the heart of these casters.

MOVE elegance sets new benchmarks. The elegant but extremely robust zinc housing and the caster with chrome accents ensure a classy appearance for the "Executive" segment. Available in matte chrome and shiny chrome, MOVE elegance enhances any premium product.

Electrostatic dissipative (ESD) casters allow static electricity to flow through the tread of the casters and dissipate to the floor. These casters are used wherever protection from electrostatic discharge is required, especially in industrial applications.

Sales are made to commercial customers only.

Technical Details

Product Type Furniture caster
Wheel diameter 50mm
Load capacity 50kg
Overall height with fixing 64mm

Wheel:


Wheel type Soft wheel
Wheel core / tread color RAL 9005 Jet black / RAL 9005 Jet black

Housing:


Housing form hooded, with neck diameter
Neck diameter 17mm
Housing material Zinc die-cast
Housing color Shiny chrome
Mobility concept Freewheel
Fixing M10x15mm Threaded stem
Description DUZB504-224 X10

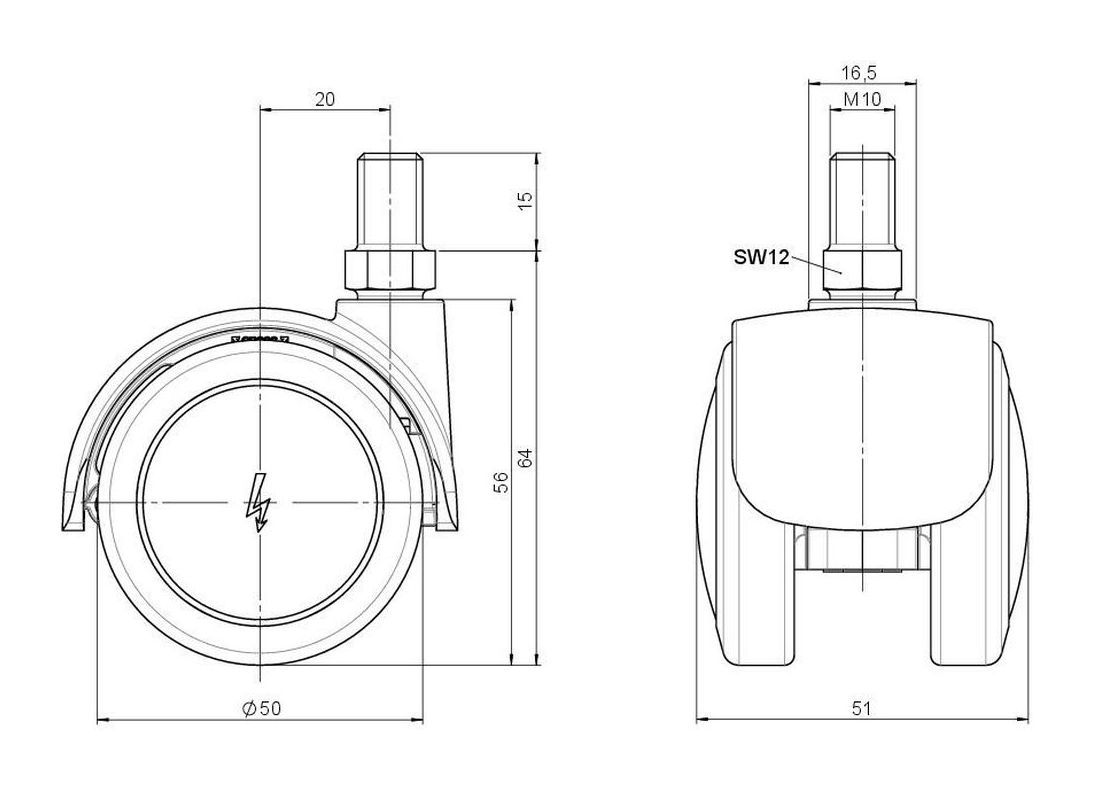

Technical Drawing

Fixings

Compatible with the following available fixings:

No-Noise™ Stem:

  • 11x19,5mm with 11,4mm circlip
  • 11x19,5mm with 110,6mm circlip
  • 11x19,5mm with 11,8mm circlip

Push fit stems:

  • 10x22mm with 10,3mm circlip
  • 10x22mm with 10,5mm circlip
  • 11x19,5mm with 11,4mm circlip
  • 11x19,5mm with 11,8mm circlip
  • 11x22mm with 11,4mm circlip
  • 11x22mm with 11,6mm circlip
  • 11x22mm with 11,8mm circlip

Threaded stems:

  • M8x15mm
  • M8x20mm
  • M8x25mm
  • M10x15mm
  • M10x20mm
  • M10x25mm
  • M10x30mm
  • M10x40mm
  • M12x20mm

Square plates:

  • 38x38mm
  • 55x55mm
  • 60x60mm

Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
