MOVE 60 classic
The MOVE family is the basis of our success and offers the greatest possible variety of casters for different applications. The guide insert is the key component of our patented MOVE technology, the heart of these casters.
Available with Transport protector.
Sales are made to commercial customers only.
Technical Details
| Product Type | Furniture caster |
| Wheel diameter | 60mm |
| Load capacity | 60kg |
| Overall height with fixing | 70mm |
Wheel: |
|
| Wheel type | Soft wheel |
| Wheel core / tread color | RAL 9006 White aluminium / RAL 9005 Jet black |
Housing: |
|
| Housing form | unhooded, with neck diameter |
| Neck diameter | 20mm |
| Housing material | High quality nylon |
| Housing color | RAL 9006 White aluminium |
| Mobility concept | Freewheel |
| Fixing | M10x15mm Threaded stem |
| Description | DUK 560 - 2 X10 |

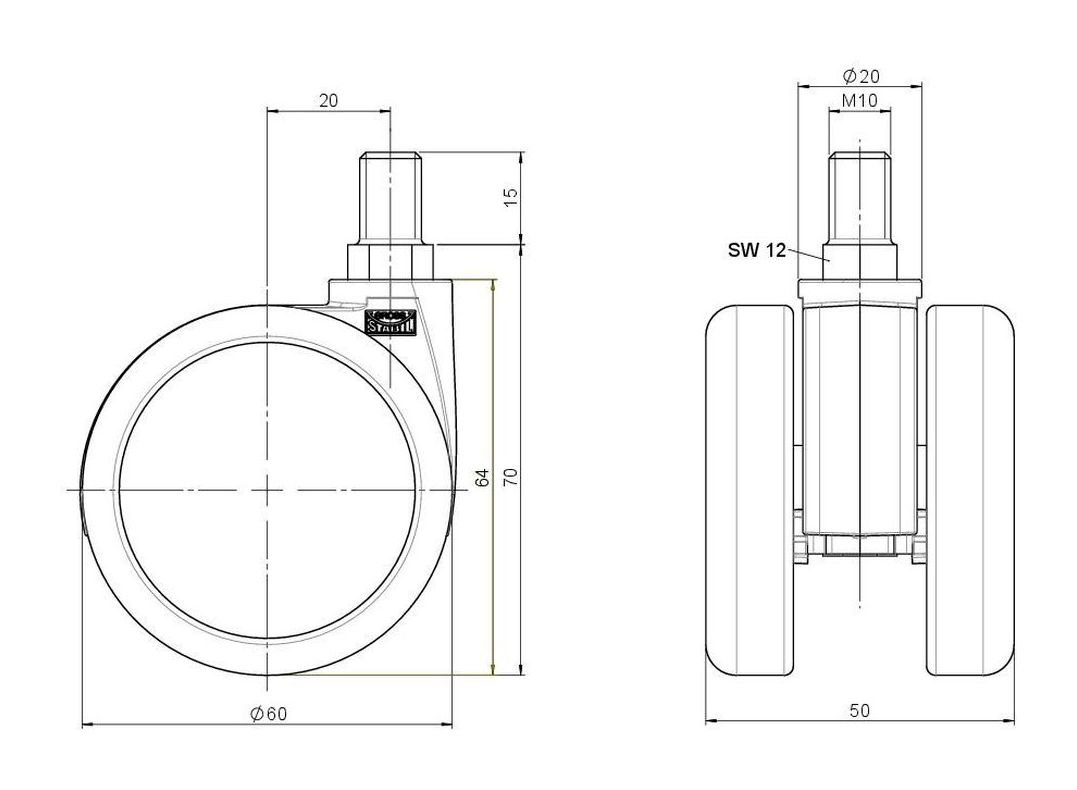

Technical Drawing
Fixings
Compatible with the following available fixings:
No-Noise™ Stem:
Push fit stems:
Threaded stems:
Square plates:
Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
Additional items in this product family:
