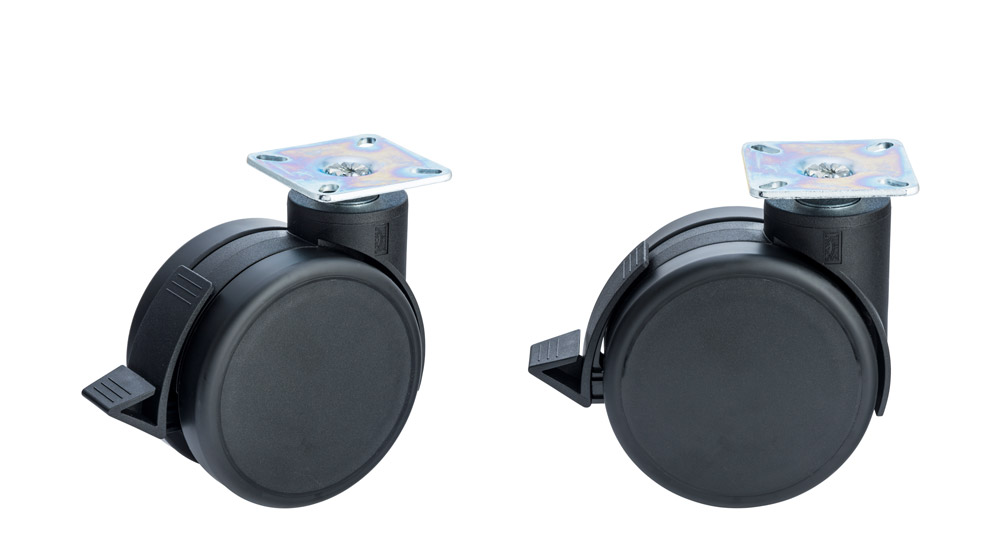

MOVE 100
The MOVE family is the basis of our success and offers the greatest possible variety of casters for different applications. The guide insert is the key component of our patented MOVE technology, the heart of these casters.
Innovative stopper brake designed for ease of use. The brake is easy to engage by pressing down on the bottom triangular portion. To release, just press on the upper portion.It is securely engaged and releases easily.
Sales are made to commercial customers only.
Technical Details
| Product Type | Furniture caster |
| Wheel diameter | 100mm |
| Load capacity | 100kg |
| Overall height with fixing | 123mm |
Wheel: |
|
| Wheel type | Soft wheel |
| Wheel core / tread color | RAL 9005 Jet black / RAL 9005 Jet black |
Housing: |
|
| Housing form | unhooded, with neck diameter |
| Neck diameter | 46mm |
| Housing material | High quality nylon |
| Housing color | RAL 9005 Jet black |
| Mobility concept | Delta-Feststeller, RAL 9005 Jet black |
| Fixing | 60x60mm Plate |
| Description | KFD 100-106 X 1 |

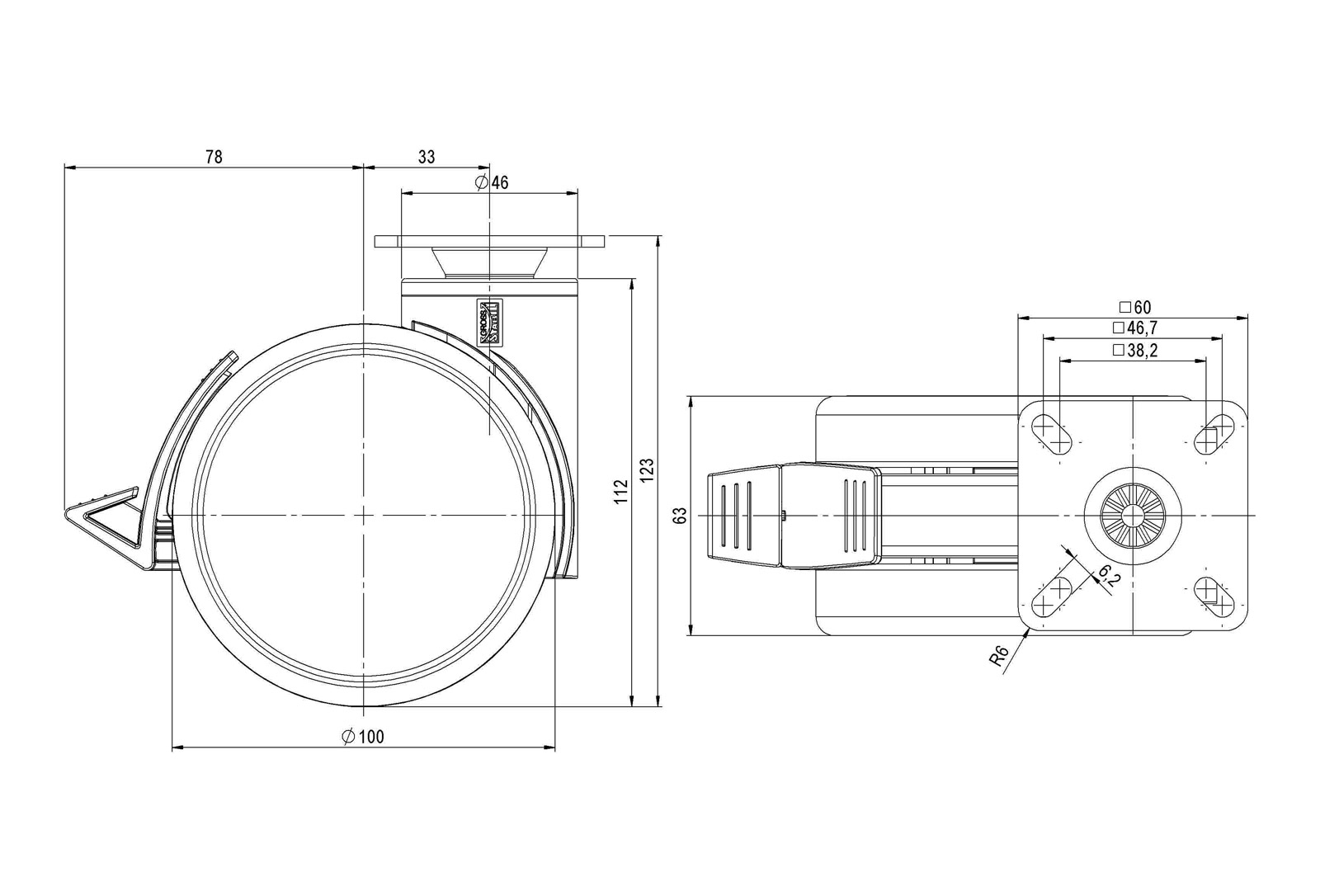

Technical Drawing
Fixings
Compatible with the following available fixings:
Push fit stems:
Threaded stems:
Square plates:
Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
