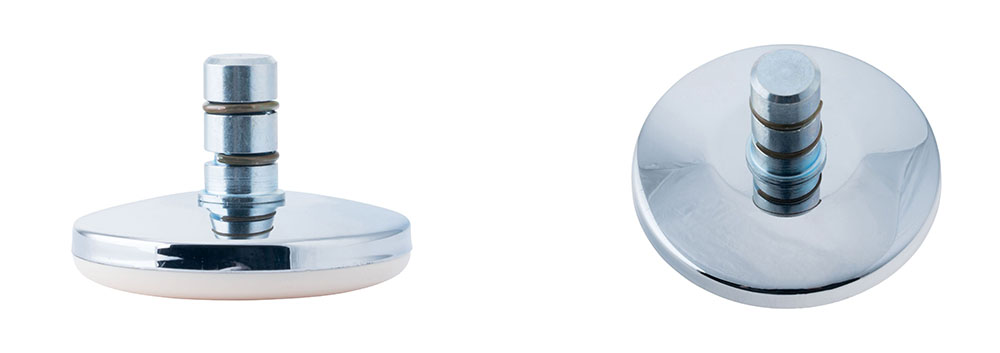

STATO F018

STATO complements the Traditional casters as a matching glide, either in plastic or chrome.

The standard for this glide is a flat bottom part.

No-Noise™ is the patented, clean and quiet transition from caster to chair base. The key difference compared to standard stems is in its technical details: The stem mount ensures there is no dirt or metal on metal grinding and the various size circlips compensate for potential tolerances in chair bases.

Technical Details

Product Type Glide
Glide bottom diameter 50mm
Load capacity 75kg
Overall height with fixing 13,5mm

Housing:


Bottom standard
Upper glide material Steel plate
Upper glide color Shiny chrome
Lower glide material High quality plastic
Lower glide color RAL 1014 Ivory
Fixing No-Noise™ Stem, 11x20mm Push fit stem with double circlips, 11,4mm
Description F 18 BG1X2NN

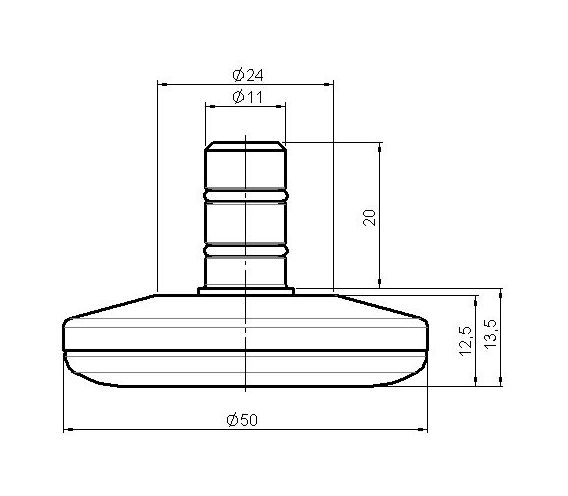

Drawing nr.
