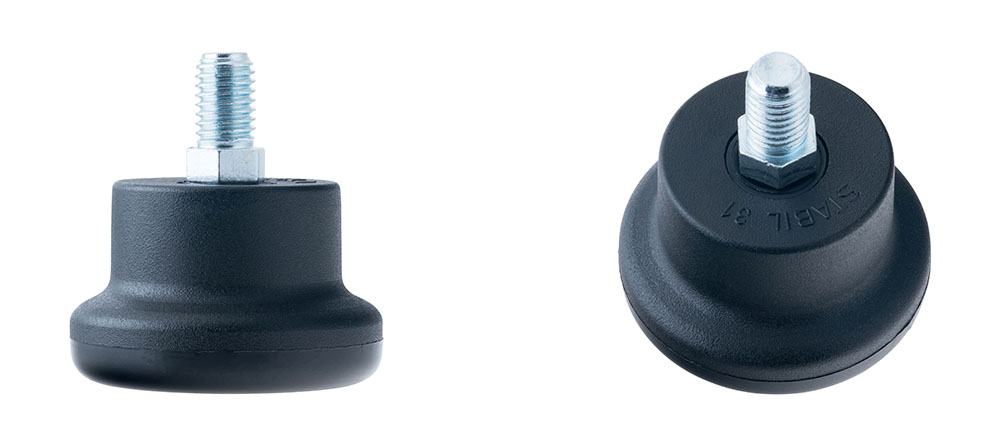

STATO F031

STATO complements the Traditional casters as a matching glide, either in plastic or chrome.

The standard for this glide is a flat bottom part.

Technical Details

Product Type Glide
Glide bottom diameter 50mm
Load capacity 75kg
Overall height with fixing 38mm

Housing:


Bottom standard
Upper glide material High quality plastic
Upper glide color RAL 9005 Jet black
Lower glide material High quality plastic
Lower glide color RAL 9005 Jet black
Fixing Standard, M10x15mm Threaded stem, without circlip
Description F 31 BG 1X10

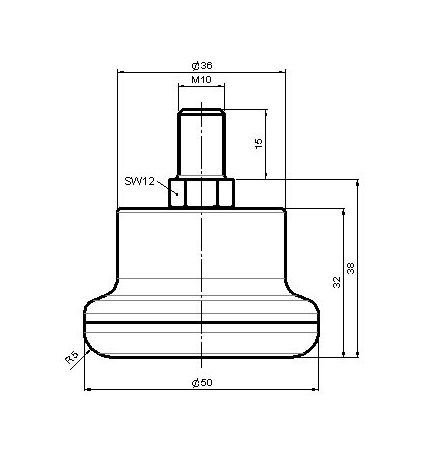

Drawing nr.
