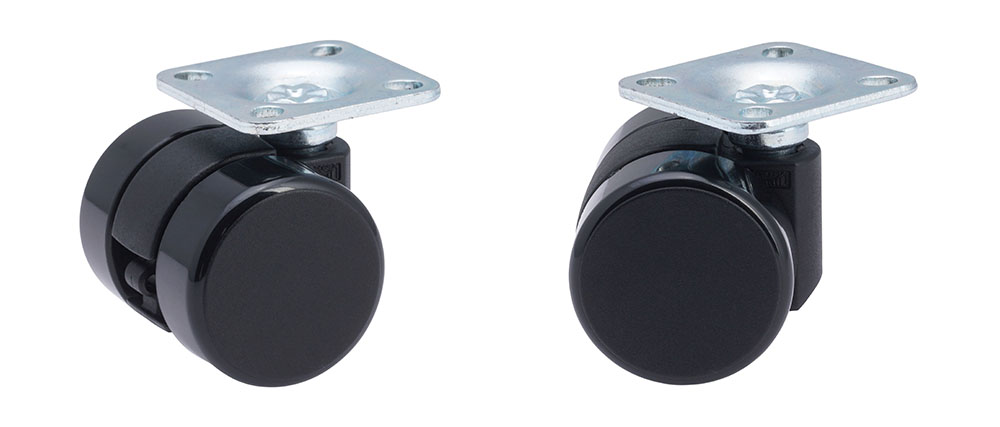

movetto 3

Little brother to the MOVE casters: only 37mm in diameter, but with an incredible high load capacity per caster!

The movetto 3 is especially intended to be used for office containers with low overall height.

Sales are made to commercial customers only.

Technical Details

Product Type Furniture caster
Wheel diameter 37mm
Load capacity 40kg
Overall height with fixing 46mm

Wheel:


Wheel type Hard wheel
Wheel color RAL 9005 Jet black

Housing:


Housing form unhooded, with neck diameter
Neck diameter 16mm
Housing material High quality nylon
Housing color RAL 9005 Jet black
Mobility concept Freewheel
Fixing 38x38mm Plate, 9,5mm
Description DDK 231 - 3 X 1

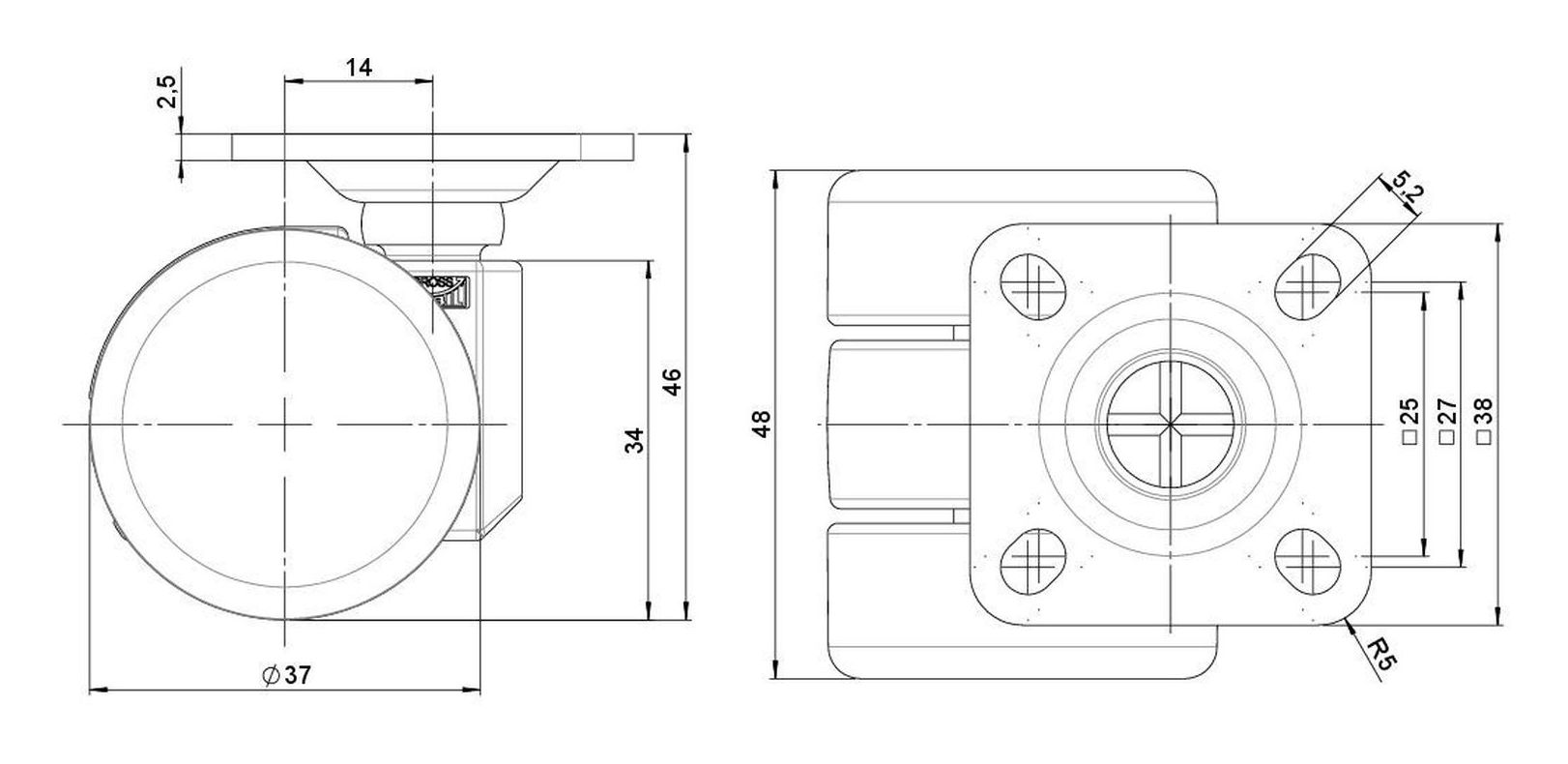

Technical Drawing

Fixings

Compatible with the following available fixings:

No-Noise™ Stem:

  • 11x19,5mm with 11,4mm circlip
  • 11x19,5mm with 110,6mm circlip

Push fit stems:

  • 10x22mm with 10,3mm circlip
  • 10x22mm with 10,5mm circlip
  • 11x19,5mm with 11,4mm circlip
  • 11x19,5mm with 11,8mm circlip
  • 11x22mm with 11,4mm circlip
  • 11x22mm with 11,6mm circlip
  • 11x22mm with 11,8mm circlip

Threaded stems:

  • M8x15mm
  • M8x25mm
  • M10x15mm
  • M10x25mm

Square plates:

  • 38x38mm
  • 55x55mm
  • 60x60mm

Caster cup:

  • 120x104mm

Caster module:

  • 400x70mm

Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
