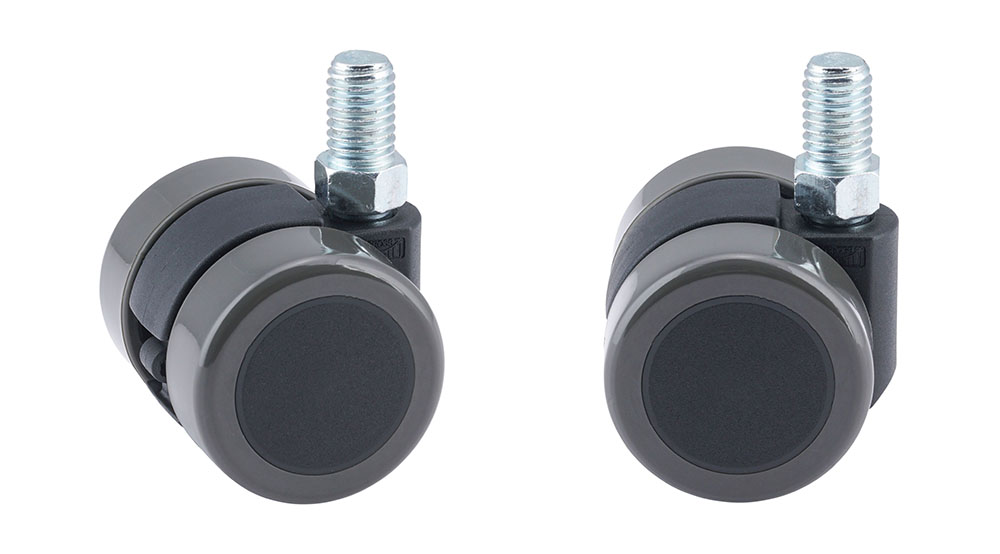

movetto 3
Little brother to the MOVE casters: only 37mm in diameter, but with an incredible high load capacity per caster!
The movetto 3 is especially intended to be used for office containers with low overall height.
Sales are made to commercial customers only.
Technical Details
| Product Type | Furniture caster |
| Wheel diameter | 37mm |
| Load capacity | 40kg |
| Overall height with fixing | 41,5mm |
Wheel: |
|
| Wheel type | Soft wheel |
| Wheel core / tread color | RAL 9005 Jet black / RAL 7022 Umbra grey |
Housing: |
|
| Housing form | unhooded, with neck diameter |
| Neck diameter | 16mm |
| Housing material | High quality nylon |
| Housing color | RAL 9005 Jet black |
| Mobility concept | Freewheel |
| Fixing | M10x15mm Threaded stem, 9,5mm |
| Description | DUK 231 - 2 X10 |

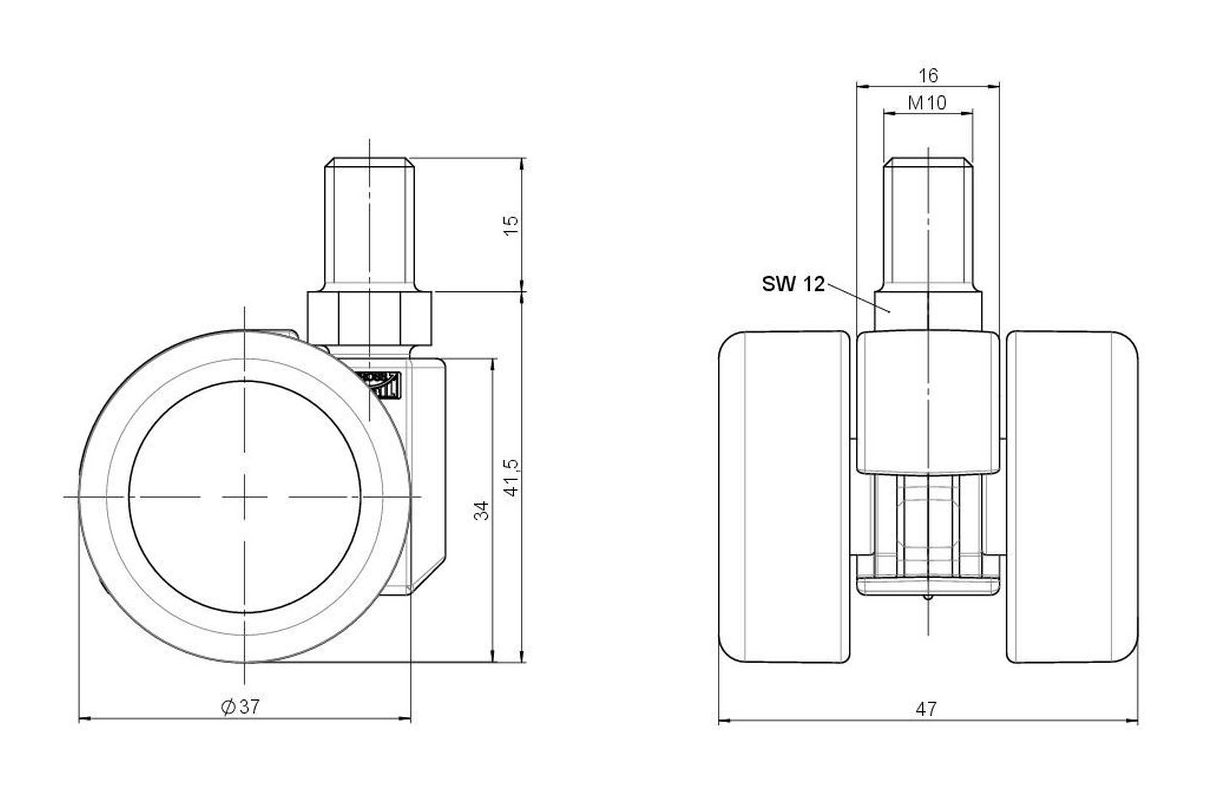

Technical Drawing
Fixings
Compatible with the following available fixings:
No-Noise™ Stem:
Push fit stems:
Threaded stems:
Square plates:
Caster cup:
Caster module:
Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
Additional items in this product family:
