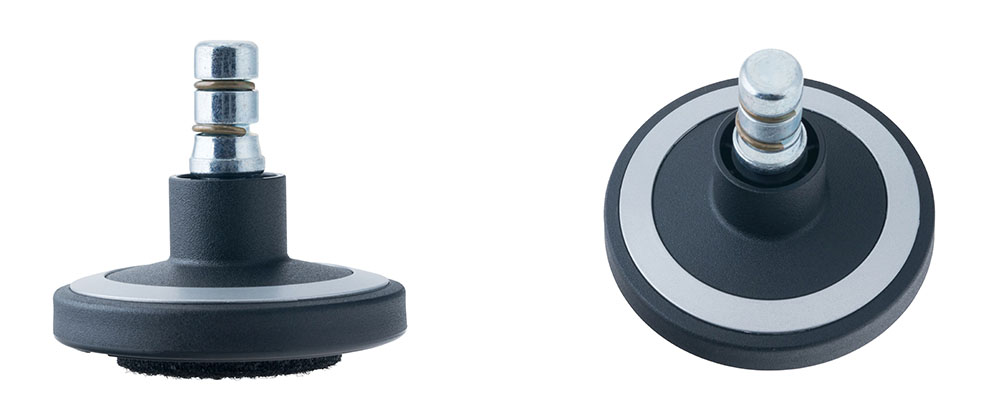

STATO M F128

Technical Details

Product Type Glide
Glide bottom diameter 60mm
Load capacity 75kg
Overall height with fixing 34,5mm

Housing:


Bottom softfelt bottom
Upper glide material High quality plastic
Upper glide color RAL 9005 Jet black with middle ring in Matte chrome
Lower glide material High quality plastic
Lower glide color RAL 9005 Jet black
Fixing No-Noise™ Stem, 11x19,5mm Push fit stem with double circlips, 11,4mm
Description F 128 BG1X2NN

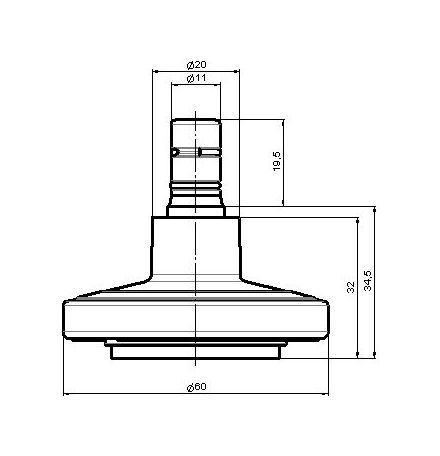

Drawing nr.
