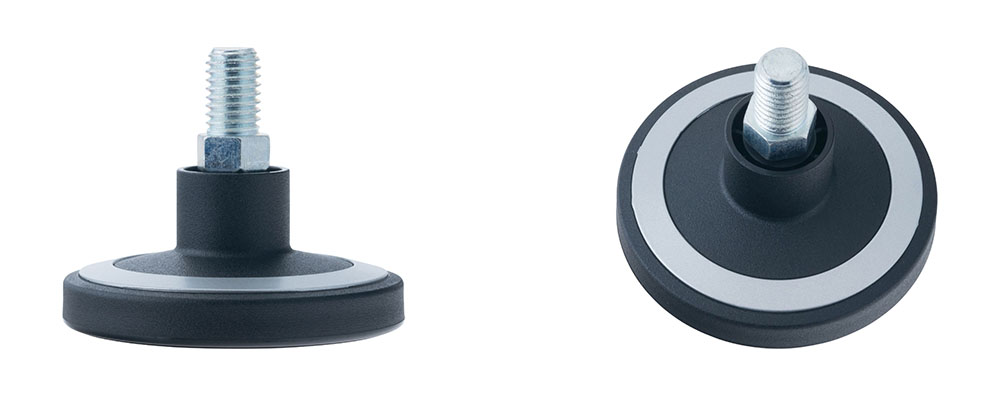

STATO M F128
Sales are made to commercial customers only.
Technical Details
| Product Type | Glide |
| Glide bottom diameter | 60mm |
| Load capacity | 80kg |
| Overall height with fixing | 33,5mm |
Housing: |
|
| Bottom | standard |
| Upper glide material | High quality plastic |
| Upper glide color | RAL 9005 Jet black with middle ring in Matte chrome |
| Lower glide material | High quality plastic |
| Lower glide color | RAL 9005 Jet black |
| Fixing | Standard, M10x15mm Threaded stem, without circlip |
| Description | F 128 BG1 X10 |

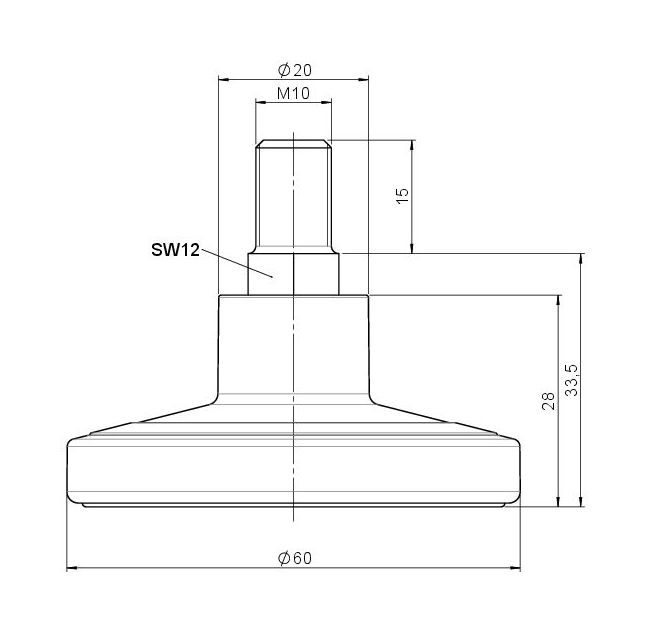

Technical Drawing
Fixings
Compatible with the following available fixings:
No-Noise™ Stem:
Push fit stems:
Threaded stems:
Square plates:
Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
Additional items in this product family:
