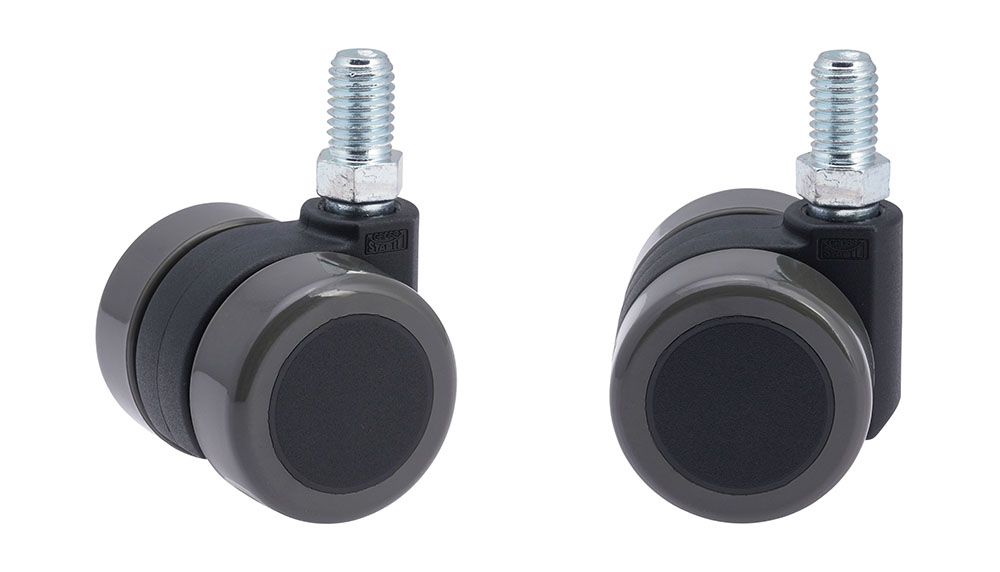

movetto 8
Little brother to the MOVE casters: only 37mm in diameter, but with an incredible high load capacity per caster!
37 mm wheel diameter and still 70 kg load bearing capacity per caster.
Sales are made to commercial customers only.
Technical Details
| Product Type | Furniture caster |
| Wheel diameter | 37mm |
| Load capacity | 70kg |
| Overall height with fixing | 47,5mm |
Wheel: |
|
| Wheel type | Soft wheel |
| Wheel core / tread color | RAL 9005 Jet black / RAL 7022 Umbra grey |
Housing: |
|
| Housing form | unhooded, with neck diameter |
| Neck diameter | 16mm |
| Housing material | High quality nylon |
| Housing color | RAL 9005 Jet black |
| Mobility concept | Freewheel |
| Fixing | M10x15mm Threaded stem |
| Description | DUK 230 - 2 X10 |

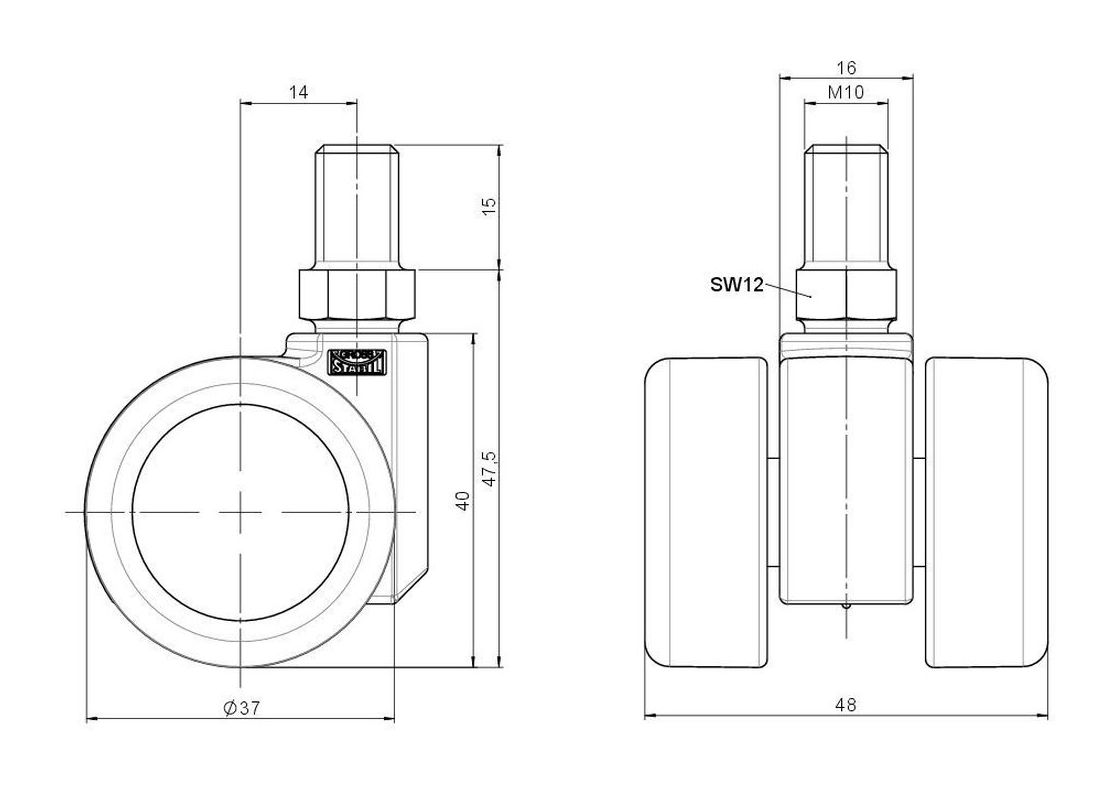

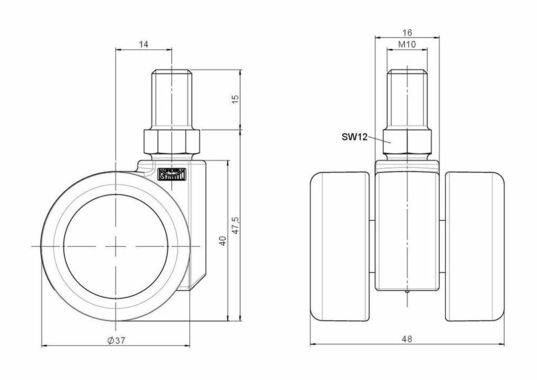

Technical Drawing
Fixings
Compatible with the following available fixings:
No-Noise™ Stem:
Push fit stems:
Threaded stems:
Square plates:
Caster cup:
Caster module:
Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
Additional items in this product family:
