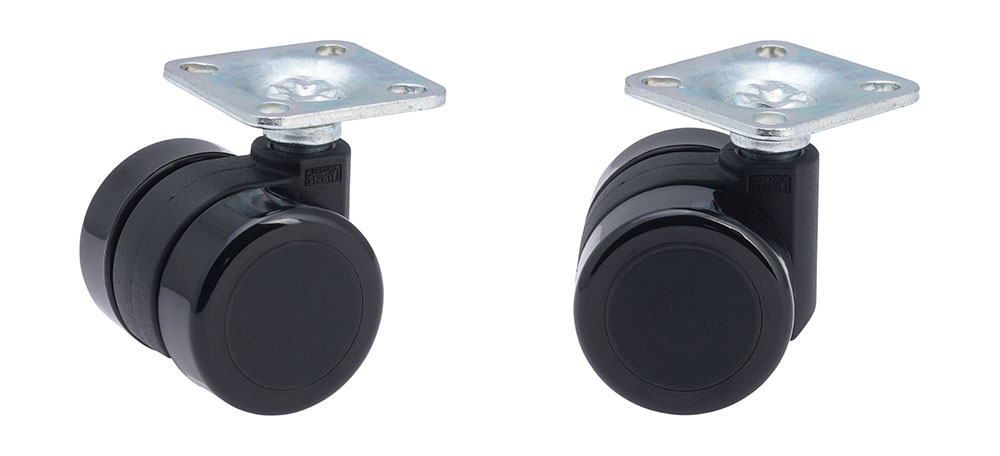

movetto 8
Little brother to the MOVE casters: only 37mm in diameter, but with an incredible high load capacity per caster!
37 mm wheel diameter and still 70 kg load bearing capacity per caster.
Technical Details
Product Type | Furniture caster |
Wheel diameter | 37mm |
Load capacity | 70kg |
Overall height with fixing | 52mm |
Wheel: |
|
Wheel type | Soft wheel |
Wheel core / tread color | RAL 9005 Jet black / RAL 9005 Jet black |
Housing: |
|
Housing form | unhooded, with neck diameter |
Neck diameter | 16mm |
Housing material | High quality nylon |
Housing color | RAL 9005 Jet black |
Mobility concept | Freewheel |
Fixing | 38x38mm Plate |
Description | DUK 230 - 2 X 1 |

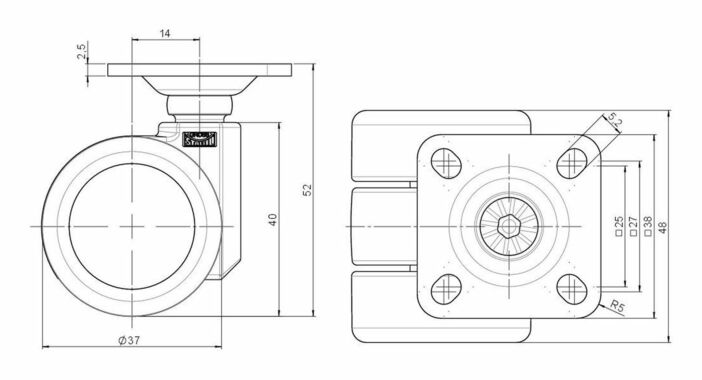

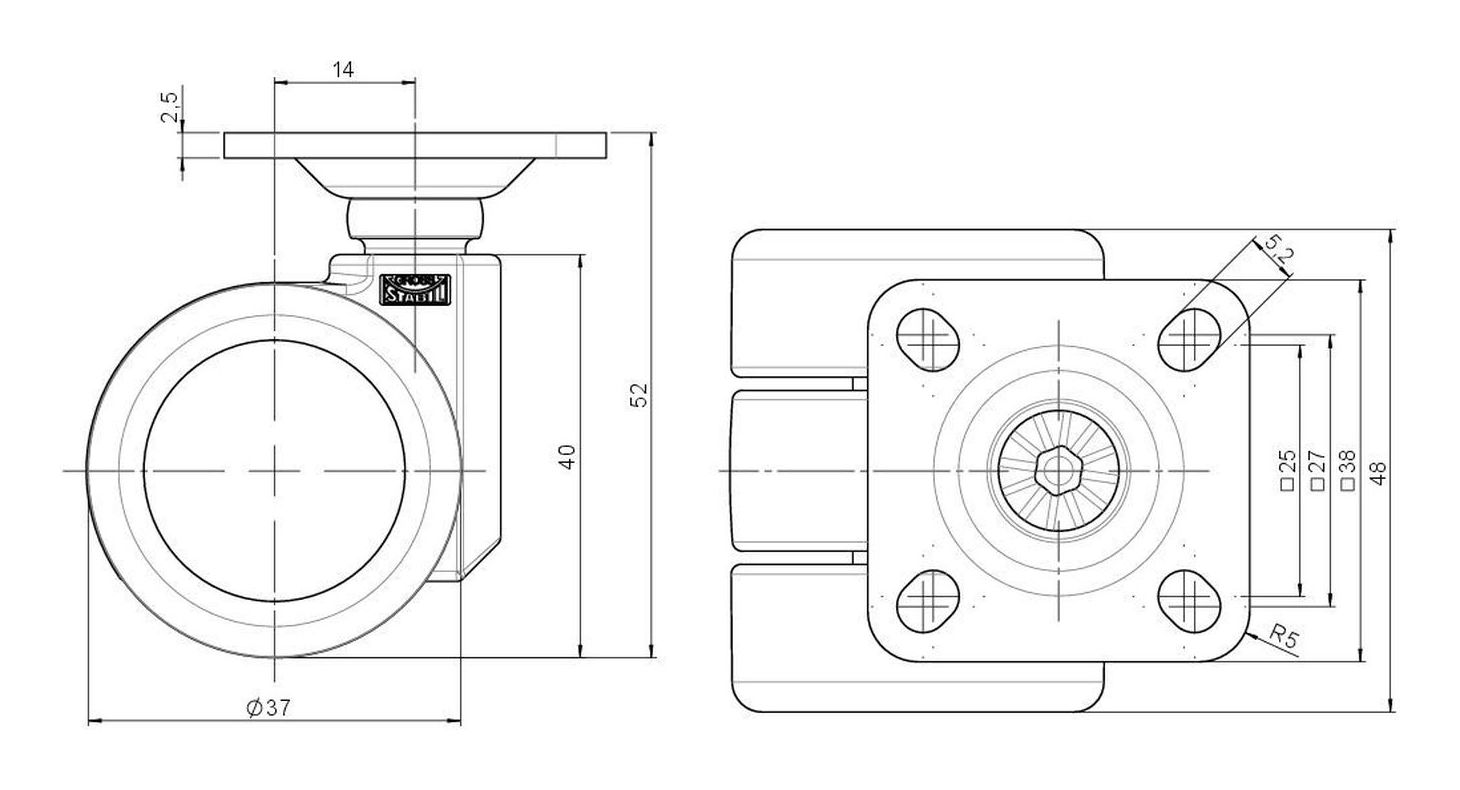

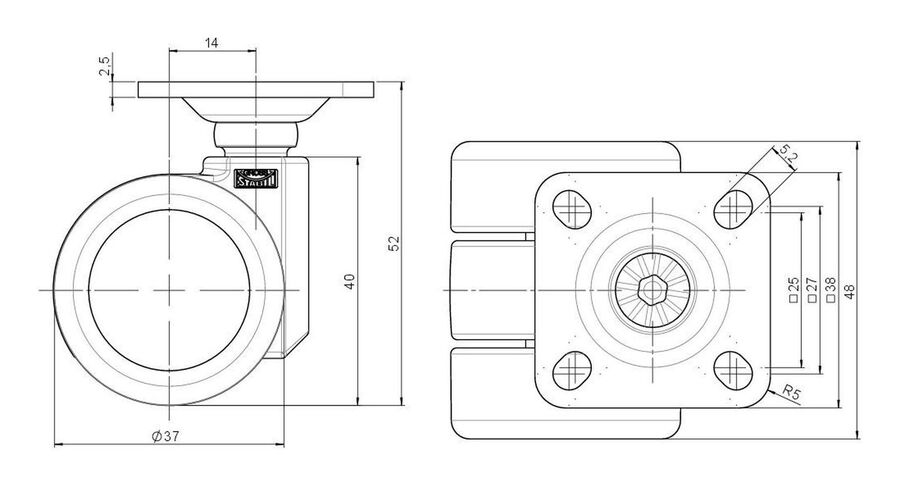

Technical Drawing
