movetto 8
Little brother to the MOVE casters: only 37mm in diameter, but with an incredible high load capacity per caster!
37 mm wheel diameter and still 70 kg load bearing capacity per caster.
The standard stopper brake ensures that the caster and the piece of furniture will not roll away.
Sales are made to commercial customers only.
Technical Details
| Product Type | Furniture caster |
| Wheel diameter | 37mm |
| Load capacity | 70kg |
| Overall height with fixing | 52mm |
Wheel: |
|
| Wheel type | Soft wheel |
| Wheel core / tread color | RAL 9005 Jet black / RAL 9005 Jet black |
Housing: |
|
| Housing form | unhooded, with neck diameter |
| Neck diameter | 16mm |
| Housing material | High quality nylon |
| Housing color | RAL 9005 Jet black |
| Mobility concept | Stopper brake |
| Fixing | 38x38mm Plate |
| Description | DUKF230 - 2 X 1 |

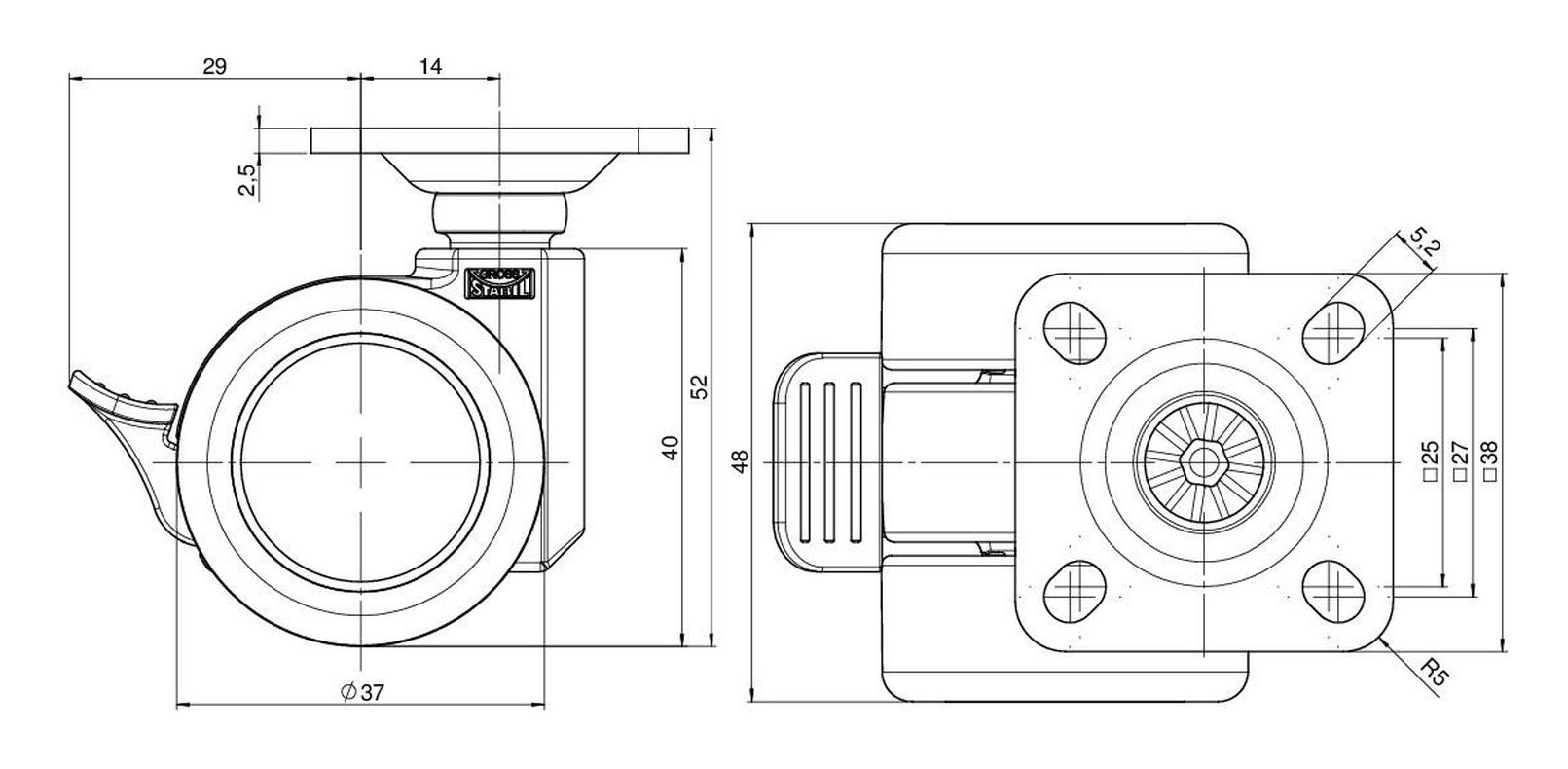

Technical Drawing
Fixings
Compatible with the following available fixings:
No-Noise™ Stem:
Push fit stems:
Threaded stems:
Square plates:
Caster cup:
Caster module:
Our standard is that all of our fixings are zinc-coated. Upon request, we can offer special finishes or also threaded stems made of stainless steel.
Additional items in this product family:
